Depth Camera Routine

1、G1 robot depth camera introduction and official information acquisition

Section titled “1、G1 robot depth camera introduction and official information acquisition”

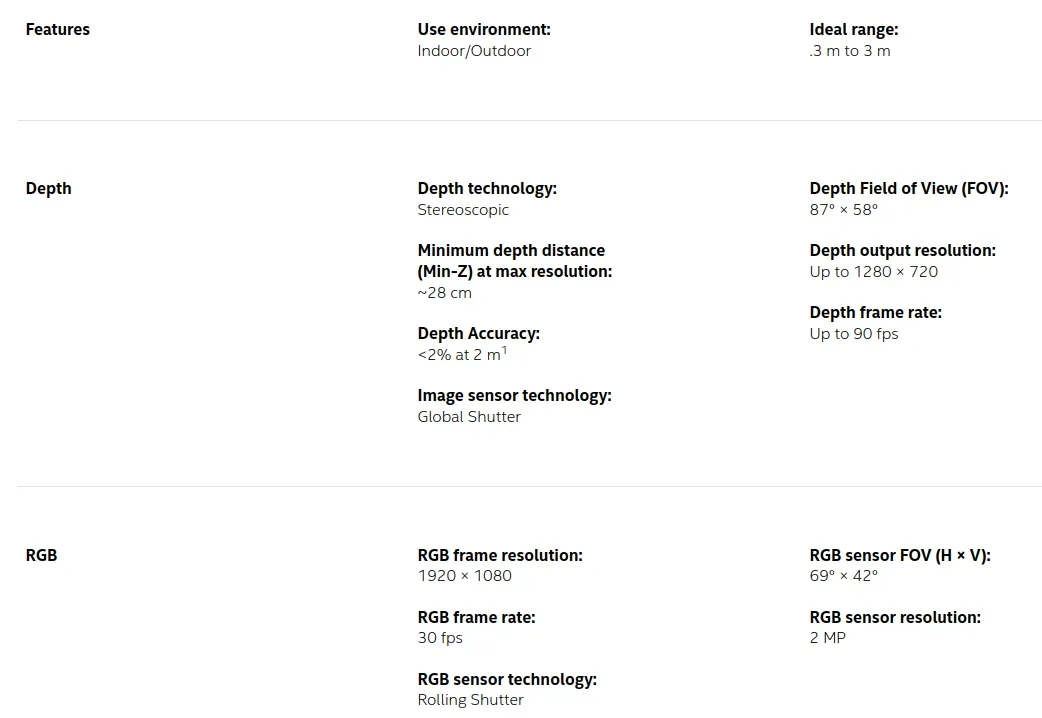

The G1 robot depth camera is located overhead and is a realsense D435i. The camera includes binocular infrared camera (global shutter), laser transmitter, RGB camera (rolling shutter), and 6-axis imu.

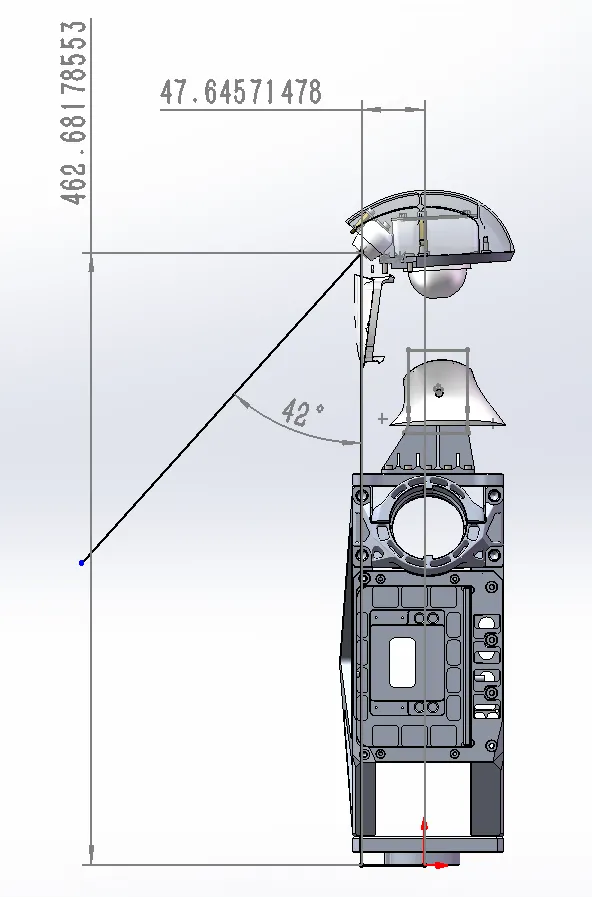

The depth camera coordinate system, the relationship between the depth camera coordinate system and the robot center coordinate system:

2. Data acquisition

Section titled “2. Data acquisition”

2.1 View the data through the host computer

Section titled “2.1 View the data through the host computer”

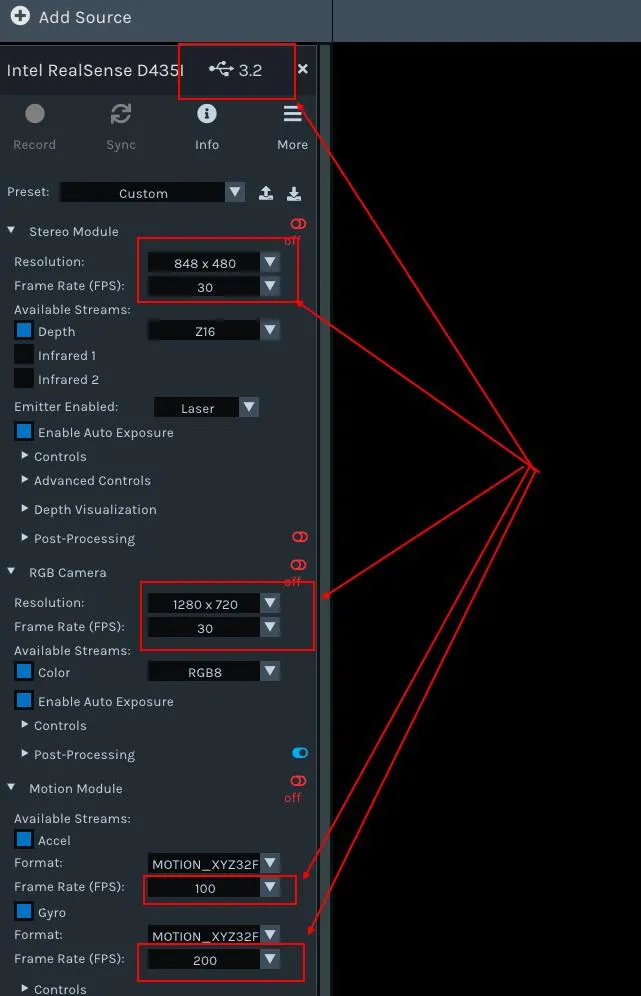

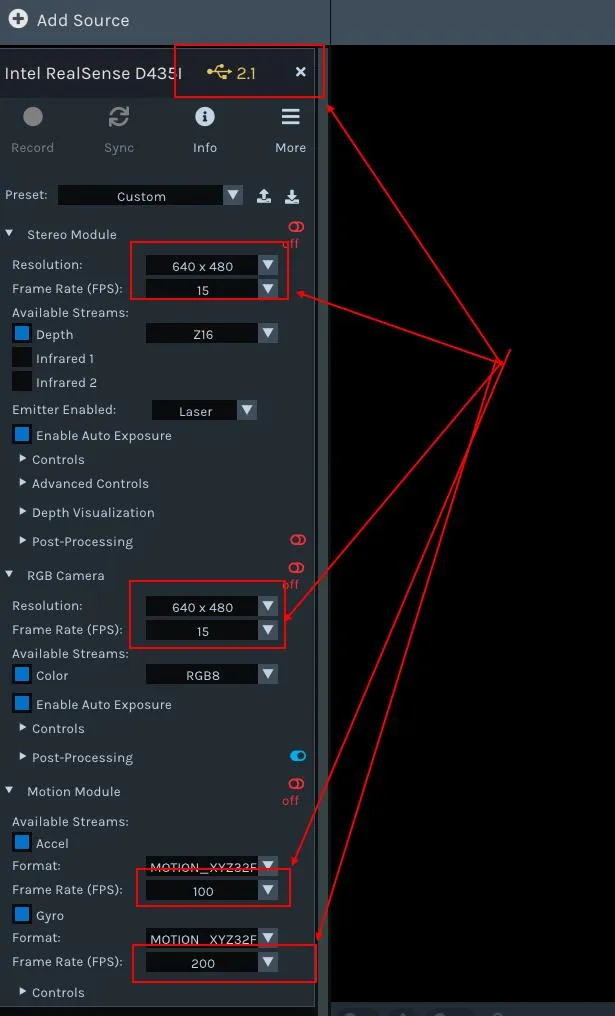

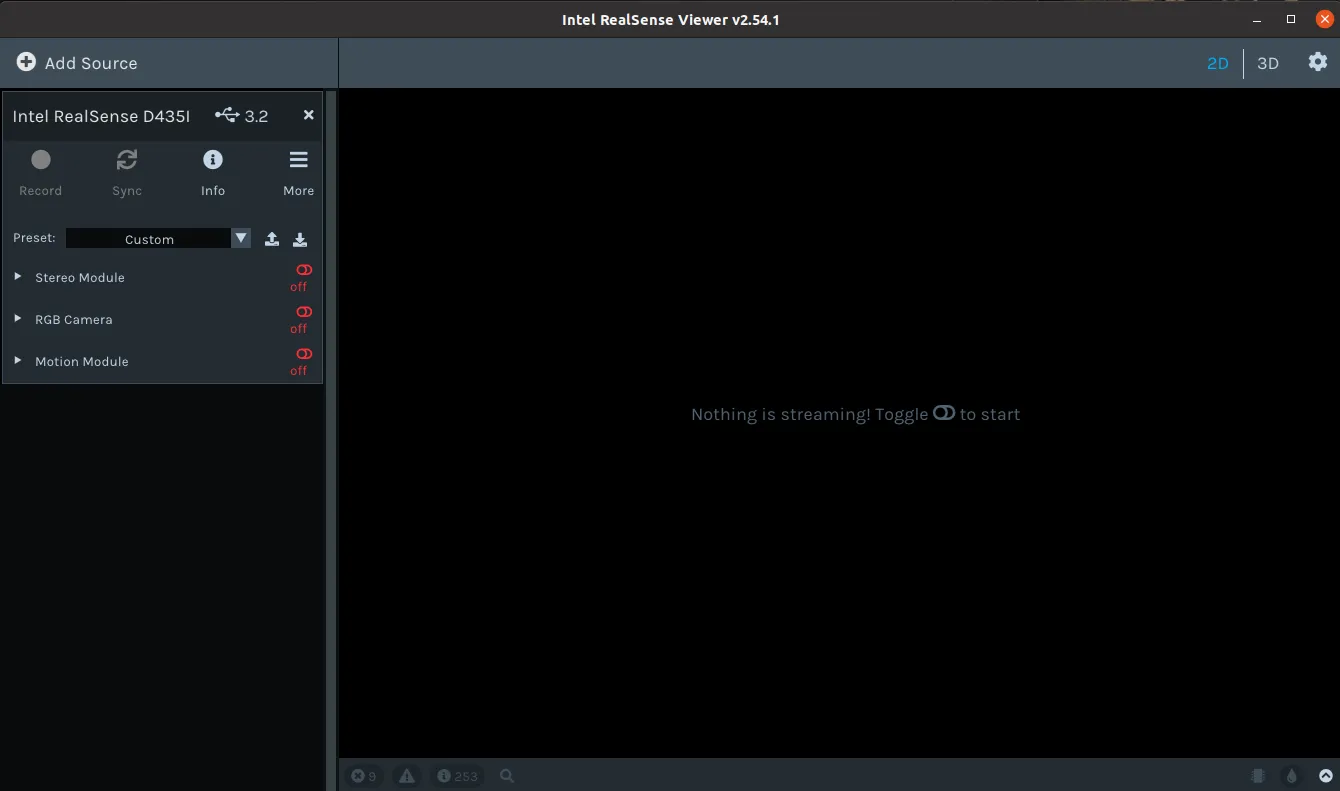

On windows,the download Intel RealSense. Viewer.Exe links: https://github.com/IntelRealSense/librealsense/releases On Linux, need to compile the SDK installation.

Before use, you need to install librealsense on the robot’s NX computer platform. When the hardware connection is normal, enter realsense-viewer on the terminal to open the software. You can view:

2.2 Get data via ros

Section titled “2.2 Get data via ros”

Ros camera driver code warehouse: https://github.com/IntelRealSense/realsense-ros Refer to the readme file of the code repository for detailed instructions. In daily use, it is recommended to obtain data through the sdk and process it.

2.3 Obtain data through the SDK

Section titled “2.3 Obtain data through the SDK”

Camera SDK code warehouse: https://github.com/IntelRealSense/librealsense

The use of SDK can be referred to: Code content in /librealsense-2.54.1/examples

Reference demo:

/**
 * @file test.cpp
 * get_camera_imu_stream_test
 *
 */
#include <librealsense2/rs.hpp>
#include <librealsense2/hpp/rs_internal.hpp>
#include <unistd.h>
#include <iostream>


#include <mutex>
#include <thread>


#include <opencv2/core.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/imgcodecs.hpp>
#include <opencv2/highgui.hpp>


std::mutex mutex;
rs2::frameset fs_frame = {};
double fs_timestamp = 0.0;
bool fs_flag = false;


void stream_callback(const rs2::frame& frame){
    static double fs_last_timestamp = 0.0;
    static double gyro_last_timestamp = 0.0;
    static double accel_last_timestamp = 0.0;


    if(rs2::frameset c_frame = frame.as<rs2::frameset>()){
        // do not use
        // // double f_timestamp = c_frame.get_timestamp()*1e-3;
        // // printf("frame f_timestamp:   %.4f \n", f_timestamp);


        double clc_timestamp;{
            struct timespec time = {0};
            clock_gettime(CLOCK_REALTIME, &time);
            clc_timestamp = time.tv_sec + time.tv_nsec*1e-9;
        }


        std::unique_lock<std::mutex> lock(mutex);
        fs_frame = c_frame;
        fs_timestamp = clc_timestamp;
        fs_flag = true;
        lock.unlock();


        // printf("frame clc_timestamp:  %.4f \n", clc_timestamp);
        // printf("frame fps:  %.4f \n", 1/(clc_timestamp - fs_last_timestamp));


        fs_last_timestamp = clc_timestamp;
    }else if(rs2::motion_frame m_frame = frame.as<rs2::motion_frame>()){


        if (m_frame.get_profile().stream_name() == "Gyro"){
            double clc_timestamp;{
                struct timespec time = {0};
                clock_gettime(CLOCK_REALTIME, &time);
                clc_timestamp = time.tv_sec + time.tv_nsec*1e-9;
            }


            // Get gyro measures
            rs2_vector gyro_data = m_frame.get_motion_data();


            // std::cout << "gyro_data" << gyro_data << std::endl;


            // printf("gyro clc_timestamp:  %.4f \n", clc_timestamp);
            // printf("gyro fps:  %.4f \n", 1/(clc_timestamp - gyro_last_timestamp));


            gyro_last_timestamp = clc_timestamp;
        }else if (m_frame.get_profile().stream_name() == "Accel"){
            double clc_timestamp;{
                struct timespec time = {0};
                clock_gettime(CLOCK_REALTIME, &time);
                clc_timestamp = time.tv_sec + time.tv_nsec*1e-9;
            }


            // Get accelerometer measures
            rs2_vector accel_data = m_frame.as<rs2::motion_frame>().get_motion_data();
            // std::cout << "accel_data" << accel_data << std::endl;


            // printf("accel clc_timestamp:  %.4f \n", clc_timestamp);
            // printf("accel fps:  %.4f \n", 1/(clc_timestamp - accel_last_timestamp));


            accel_last_timestamp = clc_timestamp;
        }
    }
}


rs2::device get_a_realsense_device()
{
    // Instantiate context
    rs2::context ctx;


    // The query_device method of the context retrieves a list of devices and returns a Device_List object
    rs2::device_list devices = ctx.query_devices();


    // Instantiate device
    rs2::device selected_device;
    if (devices.size() == 0){
        std::cerr << "No device connected!!!!!" << std::endl;
        exit(0);
    }


    // Printing device information
    std::cout <<"get device num: "<<devices.size()<<std::endl;
    for (int i = 0; i < devices.size(); i++){
        std::vector<rs2::sensor> sensors = devices[i].query_sensors();
        std::string serial = devices[i].get_info(RS2_CAMERA_INFO_SERIAL_NUMBER);
        std::string port = devices[i].get_info(RS2_CAMERA_INFO_PHYSICAL_PORT);


        std::cout << "get serial " << i << " : " << serial << std::endl;
        std::cout << "get port " << i << " : " << port << std::endl;
    }


    // Passing the first device to the selected_device obtained by device instantiation
    selected_device = devices[0];


    // At this point, selected_device represents our current device and returns it
    return selected_device;
}


void  get_sensor_option(const rs2::sensor& sensor)
{
    std::cout << "Sensor name: " << "<"  << sensor.get_info(RS2_CAMERA_INFO_NAME) << ">" <<std::endl;
    std::cout << "This sensor supports the following options:\n" << std::endl;
    // Cycle all parameters
    for (int i = 0; i < static_cast<int>(RS2_OPTION_COUNT); i++)
    {
        rs2_option option_type = static_cast<rs2_option>(i);


        // Firstly, determine whether the sensor supports this option setting
        if (sensor.supports(option_type))
        {
            // Retrieve and print a description of the current option
            const char* description = sensor.get_option_description(option_type);


            // Retrieve the value of the current option
            float current_value = sensor.get_option(option_type);


            // Get the value range, default value, and value step size of the option
            rs2::option_range range = sensor.get_option_range(option_type);
            float default_value = range.def;
            float maximum_supported_value = range.max;
            float minimum_supported_value = range.min;
            float difference_to_next_value = range.step;


            // print
            std::cout << "    " << i << ": "  << "<" << option_type  << ">" << std::endl;
            std::cout << "        Description   : " << description << std::endl;
            std::cout << "        Min Value     : " << minimum_supported_value << std::endl;
            std::cout << "        Max Value     : " << maximum_supported_value << std::endl;
            std::cout << "        Step          : " << difference_to_next_value << std::endl;
            std::cout << "        Default Value : " << default_value << std::endl;
            std::cout << "        Current Value : " << current_value << std::endl;
            std::cout << std::endl;
        }
        else
        {
            //std::cout << "        is not supported by this sensor" << std::endl;
        }
    }
    std::cout << std::endl;
    std::cout << std::endl;
}


void change_sensor_option(const rs2::sensor& sensor, rs2_option option_type, float requested_value)
{
    // Firstly, determine whether the sensor supports this option setting
    if (!sensor.supports(option_type))
    {
        std::cout << "option is not supported by sensor " << "<"  << sensor.get_info(RS2_CAMERA_INFO_NAME) << ">" << std::endl;
        return;
    }
    else
    {
        // Use the set_option function to assign new values to options
        sensor.set_option(option_type, requested_value);
        std::cout << "<"  << sensor.get_info(RS2_CAMERA_INFO_NAME) << "> " << "change " << "<" << option_type  << ">" << " to " << ": " << requested_value << std::endl;
    }


}


void l_get_intrinsics(const rs2::stream_profile& stream, float &_fx, float &_fy, float &_cx, float &_cy)
{


    // A sensor's stream (rs2::stream_profile) is in general a stream of data with no specific type.
    // For video streams (streams of images), the sensor that produces the data has a lens and thus has properties such
    //  as a focal point, distortion, and principal point.
    // To get these intrinsics parameters, we need to take a stream and first check if it is a video stream
    if (rs2::video_stream_profile video_stream = stream.as<rs2::video_stream_profile>())
    {
        try
        {
            // Using the get_intriniscs method to obtain camera intrinsic parameters
            rs2_intrinsics intrinsics = video_stream.get_intrinsics();
            // Process some results
            auto principal_point = std::make_pair(intrinsics.ppx, intrinsics.ppy);
            auto focal_length = std::make_pair(intrinsics.fx, intrinsics.fy);
            rs2_distortion model = intrinsics.model;




            /*std::cout << "width*height         : " << intrinsics.width << " * " << intrinsics.height << std::endl;
            std::cout << "Principal Point         : " << principal_point.first << ", " << principal_point.second << std::endl;
            std::cout << "Focal Length            : " << focal_length.first << ", " << focal_length.second << std::endl;
            std::cout << "Distortion Model        : " << model << std::endl;
            std::cout << "Distortion Coefficients : [" << intrinsics.coeffs[0] << "," << intrinsics.coeffs[1] << "," <<
            intrinsics.coeffs[2] << "," << intrinsics.coeffs[3] << "," << intrinsics.coeffs[4] << "]" << std::endl;*/
            std::cout << "\n\n--------------- intrinsics ---------------" << std::endl;
            std::cout << "width*height         : " << intrinsics.width << " * " << intrinsics.height << std::endl;
            std::cout << "Camera.fx: " << focal_length.first << std::endl;
            std::cout << "Camera.fy: " << focal_length.second << std::endl;
            std::cout << "Camera.cx: " << principal_point.first << std::endl;
            std::cout << "Camera.cy: " << principal_point.second << std::endl;
            std::cout << "---------------  ---------------\n\n" << std::endl;


            _fx = focal_length.first;
            _fy = focal_length.second;
            _cx = principal_point.first;
            _cy = principal_point.second;
        }
        catch (const std::exception &e)
        {
            std::cout << "Failed to get intrinsics for the given stream. " << e.what() << std::endl;
        }
    }
}


int main()
{
    rs2::device selected_device;
    selected_device = get_a_realsense_device();


    std::vector<rs2::sensor> sensors = selected_device.query_sensors();


    // Print sensor parameters
    for (rs2::sensor sensor : sensors){
        get_sensor_option(sensor);
    }


    // Set sensor parameters
    for (rs2::sensor sensor : sensors){
        std::string sensor_name = sensor.get_info(RS2_CAMERA_INFO_NAME);
        if(sensor_name == "Stereo Module"){ // Depth camera
            change_sensor_option(sensor, RS2_OPTION_VISUAL_PRESET, rs2_rs400_visual_preset::RS2_RS400_VISUAL_PRESET_HIGH_ACCURACY);
            change_sensor_option(sensor, RS2_OPTION_ENABLE_AUTO_EXPOSURE, 1);
            change_sensor_option(sensor, RS2_OPTION_EMITTER_ENABLED, 1);
            change_sensor_option(sensor, RS2_OPTION_LASER_POWER, 150);
        }else if(sensor_name == "RGB Module"){
            change_sensor_option(sensor, RS2_OPTION_ENABLE_AUTO_EXPOSURE, 1);
        }else if(sensor_name == "Motion Module"){
            // ...
        }
    }




    // Instantiate pipeline and config
    rs2::pipeline pipe;
    rs2::config cfg;


    // Depth stream
    cfg.enable_stream(RS2_STREAM_DEPTH, 640, 480, RS2_FORMAT_Z16, 60);
    // IR_left stream
    cfg.enable_stream(RS2_STREAM_INFRARED, 1, 640, 480, RS2_FORMAT_Y8, 60);
    // IR_right stream
    cfg.enable_stream(RS2_STREAM_INFRARED, 2, 640, 480, RS2_FORMAT_Y8, 60);
    // RGB stream
    cfg.enable_stream(RS2_STREAM_COLOR, 848, 480, RS2_FORMAT_BGR8, 60);
    // IMU GYRO stream
    cfg.enable_stream(RS2_STREAM_GYRO , RS2_FORMAT_MOTION_XYZ32F, 400);
    // IMU ACCEL stream
    cfg.enable_stream(RS2_STREAM_ACCEL, RS2_FORMAT_MOTION_XYZ32F, 200);


    rs2::pipeline_profile pipe_profile = pipe.start(cfg, stream_callback);


    // get Depth(IR_left) intrinsics
    float mCamera_fx, mCamera_fy, mCamera_cx, mCamera_cy;
    l_get_intrinsics(pipe_profile.get_stream(RS2_STREAM_DEPTH), mCamera_fx, mCamera_fy, mCamera_cx, mCamera_cy);


    // post process
    rs2::temporal_filter temp_filter;
    temp_filter.set_option(rs2_option::RS2_OPTION_HOLES_FILL, 6);
    temp_filter.set_option(rs2_option::RS2_OPTION_FILTER_SMOOTH_ALPHA, 0.4f);
    temp_filter.set_option(rs2_option::RS2_OPTION_FILTER_SMOOTH_DELTA, 20);


    double _timestamp_last = 0.0;
    while (true){
        rs2::frameset _frame = {};
        double _timestamp = 0.0;
        bool _flag = false;
        std::unique_lock<std::mutex> lock(mutex);
        _frame = fs_frame;
        _timestamp = fs_timestamp;
        _flag = fs_flag;
        fs_flag = false;
        lock.unlock();


        if(_flag){
            printf("_frame fps:  %.4f \n", 1/(_timestamp - _timestamp_last));


            // Obtain data for each image
            rs2::depth_frame depth_frame = _frame.get_depth_frame();
            rs2::video_frame color_frame = _frame.get_color_frame();
            rs2::frame irL_frame = _frame.get_infrared_frame(1);
            rs2::frame irR_frame = _frame.get_infrared_frame(2);


            rs2::depth_frame depth_frame_filtered = temp_filter.process(depth_frame);


            // Convert image data to OpenCV format
            cv::Mat depth_image(cv::Size(640, 480), CV_16U , (void*)depth_frame.get_data(), cv::Mat::AUTO_STEP); // Depth
            cv::Mat color_image(cv::Size(848, 480), CV_8UC3, (void*)color_frame.get_data(), cv::Mat::AUTO_STEP); // RGB
            cv::Mat irL_image  (cv::Size(640, 480), CV_8UC1, (void*)irL_frame.get_data()  , cv::Mat::AUTO_STEP); // IR_left
            cv::Mat irR_image  (cv::Size(640, 480), CV_8UC1, (void*)irR_frame.get_data()  , cv::Mat::AUTO_STEP); // IR_right


            cv::Mat p_depth_image(cv::Size(640, 480), CV_16U , (void*)depth_frame.get_data(), cv::Mat::AUTO_STEP); // post processed Depth


            // show pictures
            if (color_image.empty() || depth_image.empty() || irL_image.empty() || irR_image.empty()) {
                std::cerr << "One or more images are empty." << std::endl;
                continue;
            }
            cv::imshow("depth", depth_image);
            cv::imshow("color", color_image);
            cv::imshow("irL", irL_image);
            cv::imshow("irR", irR_image);
            cv::imshow("p_depth", depth_image);
            cv::waitKey(1);


            _timestamp_last = _timestamp;
        }else{
            usleep(2000);
        }


    }
    return 0;
}
cmake_minimum_required(VERSION 3.1.0)


project(get_camera_imu_stream_test)


set(CMAKE_BUILD_TYPE Release)
set(CMAKE_CXX_FLAGS_RELEASE "-O3 -w")
set(CMAKE_C_FLAGS_RELEASE "-O3 -w")


# Find librealsense2 installed package
find_package(realsense2 REQUIRED)
find_package(OpenCV REQUIRED)


# Enable C++11
set(CMAKE_CXX_STANDARD 11)
set(CMAKE_CXX_STANDARD_REQUIRED TRUE)


# Add the application sources to the target
add_executable(${PROJECT_NAME} test.cpp)


# Link librealsense2 to the target
target_link_libraries(${PROJECT_NAME} ${realsense2_LIBRARY} ${OpenCV_LIBS})

2.4 Regarding the USB 2.0 and USB 3.0 connection issues of realsense depth cameras

Section titled “2.4 Regarding the USB 2.0 and USB 3.0 connection issues of realsense depth cameras”

When the depth camera is connected to usb3.0, the ‘realsense viewer’ software can display its supported resolutions and frame rates: When connecting a depth camera to usb2.0, it is necessary to use a hub adapter to obtain data using the SDK normally. It can also be directly used on the NX processor of G1. Under USB 2.0 connection, the frame rate and resolution that can be obtained may differ from those under USB 3.0 connection. The ‘realsense viewer’ software can display the supported resolutions and frame rates:
